Realm Dashboard
Welcome to the Realm Dashboard! This page provides insights into call routing, media relay, and realm-based activity in your VoIP system. Use the tabs below to explore each metric in detail.
A realm is a logical grouping in VoIP systems, often representing a domain, tenant, or administrative boundary. Realms are used to segment users, devices, and traffic for multi-tenant environments, security, and policy enforcement.
- Calls From by SBC
- Calls To by SBC
- Calls From by Realm
- Calls To by Realm
- Calls Start From by SBC
- Calls Start To by SBC
- Calls Start From by Realm
- Calls Start To by Realm
- Media Relayed From by SBC
- Media Relayed To by SBC
- Media Relayed From by Realm
- Media Relayed To by Realm
- Realm Events

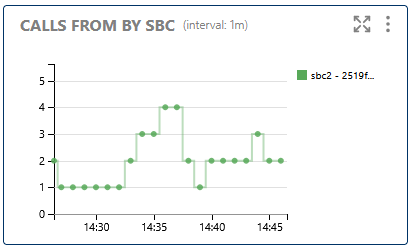

Shows the number of calls originating from each Session Border Controller (SBC), helping you monitor call distribution and load.
Use this to identify which SBCs are handling the most outbound calls.
Displays the number of calls terminating at each SBC, useful for tracking inbound call patterns and balancing resources.
Monitor which SBCs are receiving the most inbound calls.

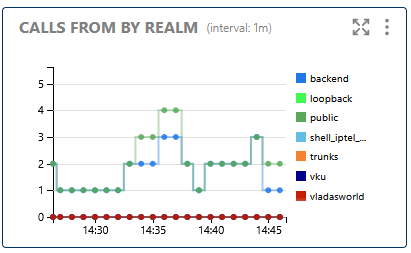

Shows calls originating from each realm (domain or tenant), helping you analyze multi-tenant usage and detect anomalies.
Identify which realms are generating the most outbound calls.

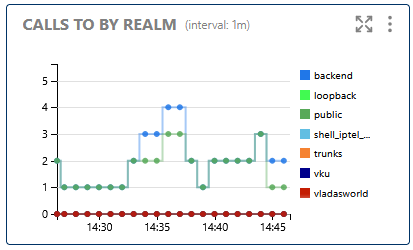

Displays calls terminating to each realm, useful for monitoring inbound traffic and service distribution.
Track which realms are receiving the most inbound calls.
Shows where calls are initiated from, by SBC, helping you monitor call setup activity and detect spikes.
Use this to spot changes in call initiation patterns.

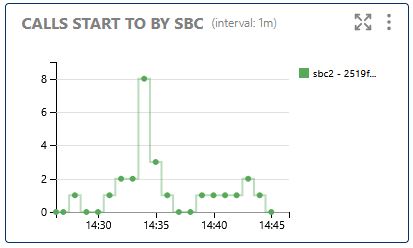

Displays where calls are initiated to, by SBC, useful for tracking call setup destinations.
Monitor which SBCs are most often targeted for call setup.

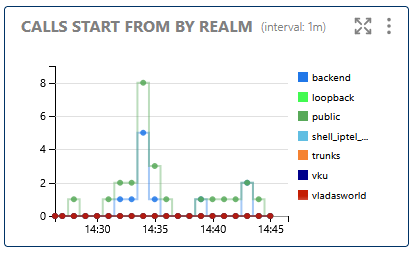

Shows call initiations from each realm, helping you analyze tenant activity and detect unusual behavior.
Track which realms are most active in call setup.

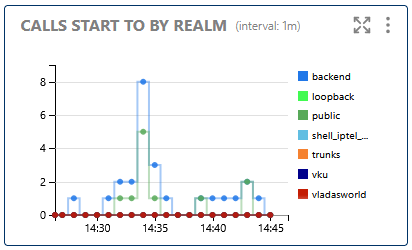

Displays call initiations to each realm, useful for monitoring service demand and balancing resources.
Identify which realms are most frequently targeted for call setup.

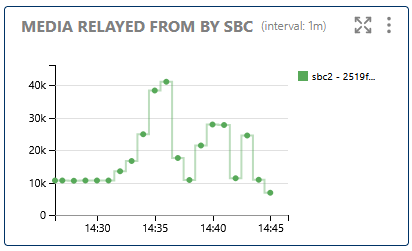

Shows the amount of media relayed from each SBC, helping you monitor media flow and detect bottlenecks.
Use this to ensure even media distribution and spot overloaded SBCs.
Displays the amount of media relayed to each SBC, useful for tracking inbound media streams.
Monitor which SBCs are receiving the most media traffic.

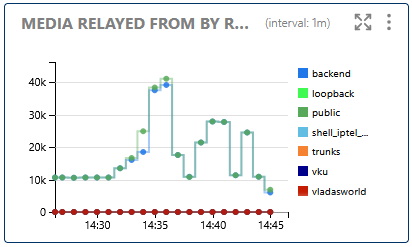

Shows media relayed from each realm, helping you analyze tenant media usage and detect imbalances.
Track which realms are sending the most media traffic.

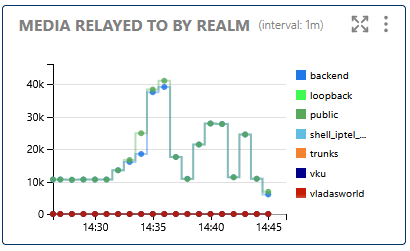

Displays media relayed to each realm, useful for monitoring inbound media and service quality.
Identify which realms are receiving the most media streams.

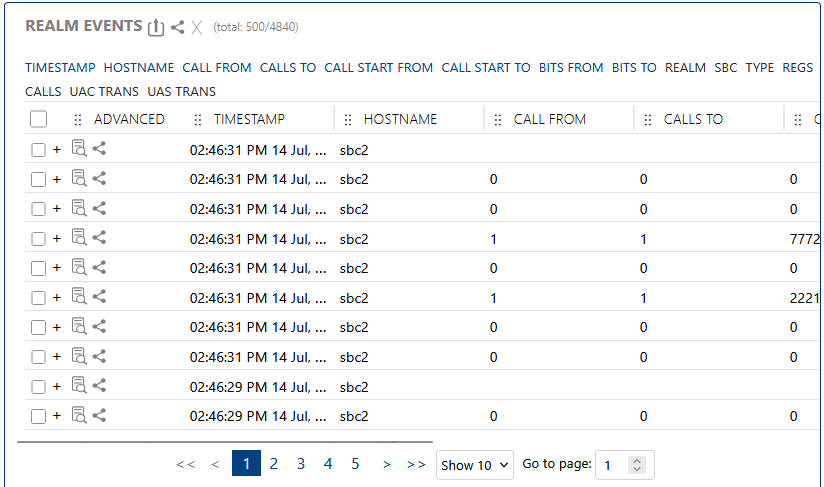

Lists individual realm events for detailed inspection, troubleshooting, and auditing.
Review realm events to investigate issues and monitor system health.
